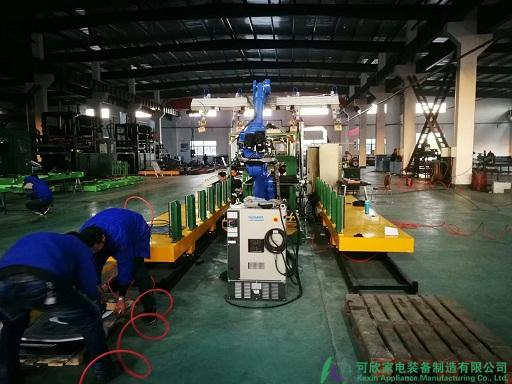

Robot full servo intelligent automatic line

Line body dimensions:22000x5500mm

Working face height：1000±50mm from the ground

Production takt：Not greater than 15S/ piece

Applicable material:Embroider aluminum plate L2Y2,thickness 0.34mm,0.36mm,stainless iron,thickness 0.4mm

The installed capacity:about 20Kw、380V、50Hz

Air supply:0.5～0.65Mpa

Color:Line color :(color board provided by party a)

The qualification rate ： greater than 99.98%.

Precision：Meet the drawing requirements

Remodel：One-button exchange (no mold change)

Center location production：The feeding material side is the fixed edge.  servo motor
